High Speed Interior Fabric Door - 992
Model 992

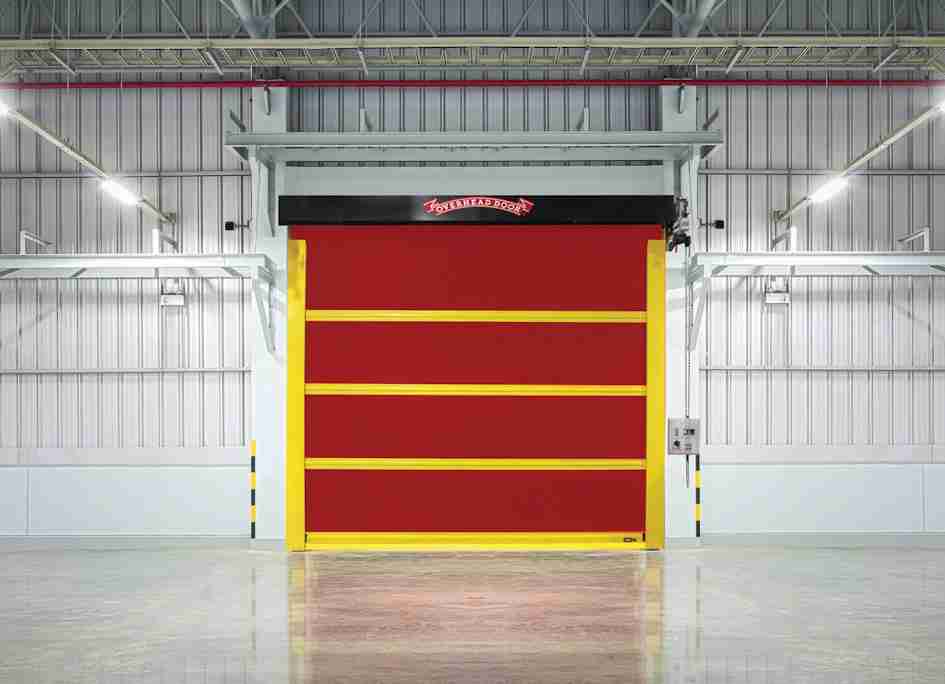

The RapidFlex® model 992 is a strutted, heavy-duty, high speed fabric door engineered for both interior and exterior use. Independently wind-load tested up to 4.0 psf, this model is built with industry-leading safety features, including a reversing edge, dual infrared obstruction detection sensors and a door stop device.
The model 992 is ideal for manufacturing, food and beverage, cold storage, warehouse and distribution facilities.
Construction
Product Specifications
| Standard Max Width | 16′ |
| Standard Max Height | 15′ |
| Speed | Up to 65″ per second |
| Break-away Self-reset | Designed to break away from the side guides to minimize damage and simply reset and self-repair after the event |
| Wind Strut | 1″ strut standard |
| Interior Application Curtain Material | 2 layers of PVC coated polyester with 1 layer of polyester weave |
| Operation | Direct drive motor and gearbox system with a door stop device |
| Control | Variable frequency drive , NEMA 4X cULus listed, Onboard self diagnostic and service reminder, Built-in padlockable field disconnect |
| Obstruction Detection | Infrared sensors mounted in-plane to the door curtain at 18″ and 50″-54″ from floor |
| Reversing Safety Edge | Wireless monitored reversing edge |
| Available Supply Voltages** | 208V AC 1PH†, 220V AC 1PH, 208V AC 3PH†, 230V AC 3PH, 460V AC 3PH, 575V AC 3PH† (†requires stand-alone mounted transformer) |
| Wind Load* | Up to 4.0 psf |
**Single phase available up to 10’ doors.
* Pressure/wind resistance value is the ultimate pressure tested at door width of 16′.
Warranty
- 5-year limited
Color
Colors
Exterior Application Colors
FDA Compliant Applications
Bottom Bar & Guide
RAL Powder Coat
Actual door color may vary from the digital representation shown here. Color samples are available by request through your Overhead Door™ Distributor. The standard color for guides, brackets, and bottom bar is yellow. 197 optional RAL powder coat color options are available.
Enhancements
Exterior/Interior application curtain material upgrade
3 layers of PVC- coated polyester with 2 layers of polyester weave
Actuation options
Push button, key switch, pull switch, loop detector, motion detector, treadle switch, radio control. Wireless options available
Signaling device options
Red/green LED warning light, horn/strobe combination, rotating warning light
Light Curtain
Front or rear mounted; available in 3′ or 6′ models
Programmable LED lighting system
3′ tall light bar with red, yellow, green lighting
Sloped hood and non-drive end cover
Protection from debris and moisture
20″ high vision panels
Spaced evenly across width of door
Food and beverage applications
An FDA-compliant fabric is available
