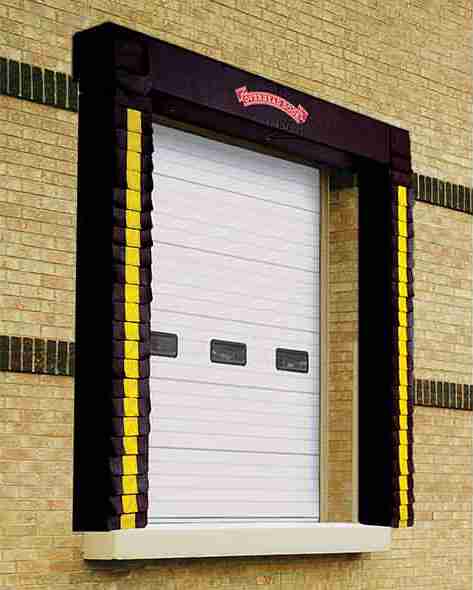

Fixed Dock Seal
LX10R
When a trailer backs into position, the top pad and side columns compress tightly against it to form a secure, weather-resistant seal around the door opening.
High Quality Construction
- The fabric is double stitched with high strength polyester thread that has been UV. treated for long term durability
- The columns and top pad have premium grade foam with full compression and recovery properties in temperatures as low as -40°F
- The fire resistant foam is continuously bonded to the backing with a non-flammable adhesive with elastic properties for long life
- Plated vent openings drain moisture and promote air circulation for compression in the vertical columns and top pad
Fabric Advantages
- Made of fire resistant fabric and available in multiple weights including a premium 40 oz fabric that has 6 times more abrasion resistance
- All fabrics are treated with UV protection to help prevent fading
Additional Trailer Impact and Abrasion Protection
- Optional column wear pleats provide additional tearing and abrasion protection
- Heavy duty 66 oz. wear pleats on the top and bottom corners also available
Optional 4 Sided Weather Protection
- At docks where there is no leveler, a bottom seal pad can provide a seal on all four sides of the opening along with the side columns and top pad
| BACK COLUMN WIDTH | FRONT COLUMN WIDTH |
|---|---|
| 10″ | 10″ |
| 12″ | 12″ |
| 8″ | 11″ |
| 8″ | 14″ |
| 12″ | 15″ |
| 12″ | 18″ |
| DIMENSIONS | STANDARD | OPTIONAL |
|---|---|---|
| Column Height 8′ | ✓ | |
| Column Height 7’6″ to 9′ | ✓ | |
| Top Pad 12″ High | ✓ | |
| Taller Top Pad 15″ or 18″ | ✓ | |
| Top Pad Width 6’4″ to 11′ | ✓ | |
| CURTAIN | ||
| Velcro Hold Curtain Fabric or PVC (Drop: 12″/18″/24″) | ✓ | |
| PROJECTION | ||
| Projection 10″ | ✓ | |
| Other Projection 8″- 20″ | ✓ | |
| Projection Box 4″/6″/8″/10″/12″ | ✓ | |
| Taper Projection 8″- 20″ top or bottom | ✓ | |
| FABRIC WEIGHT & COLOR | ||
| 22 oz (Black, Blue, Gray, Green, Brown) | ✓ | |
| 40 oz Regular (Black, Blue, Gray, Green, Red, Brown) | ✓ | |
| 40 oz Premium (Black) | ✓ | |
| DOUBLE LAYER FABRIC | ||
| *Double layer of fabric on impact area of columns | ✓ | |
| FRAME | ||
| Treated Lumber | ✓ | |
| Galvanized Steel | ✓ | |
| DRAFT CONTROL | ||
| Two bottom draft flaps | ✓ | |
| BOTTOM SEAL PAD | ||
| 4′ or 8′ Long | ✓ | |
| GUIDE STRIPES | ||
| 24″ High | ✓ | |
| Full Height | ✓ | |
| MOUNTING | ||
| Galvanized Mounting Hardware | ✓ | |
| SCUFF GUARDS | ||
| Scuff Guards (40 oz Premium, Black) | ✓ | |
| 48″ tall additional layer of fabric inside columns | ||
| SECURITY SEAL | ||
| 4′ or 8′ High | ✓ | |
| WEAR PLEATS | ||
| Wear Pleats 4″/8″/16″ Exposure (same weight/color available as above) | ✓ | |
| Heavy Duty 66 oz Top and Bottom Corner Pleats, 4″ exposure (Black, Blue, Orange) | ✓ |
* Available in all 22 oz and 40 oz fabrics and colors
